Name:GJGF-2 fully automatic filling and sealing machine
Number:Pro2012103091734
Related Products:GJGF-2
Label:filling and sealing machine
Company:qunxing machinery
Time:2012/10/30 9:18:49

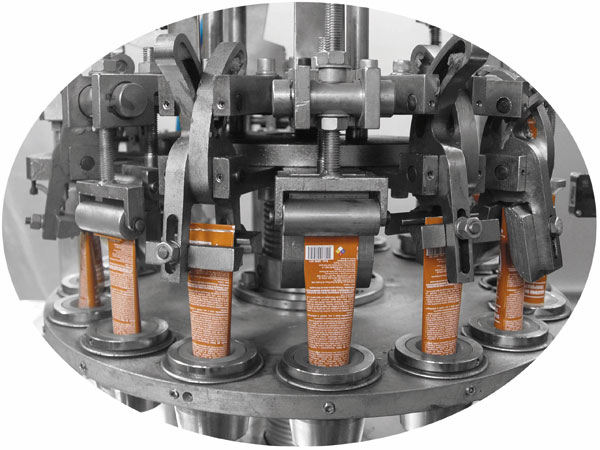

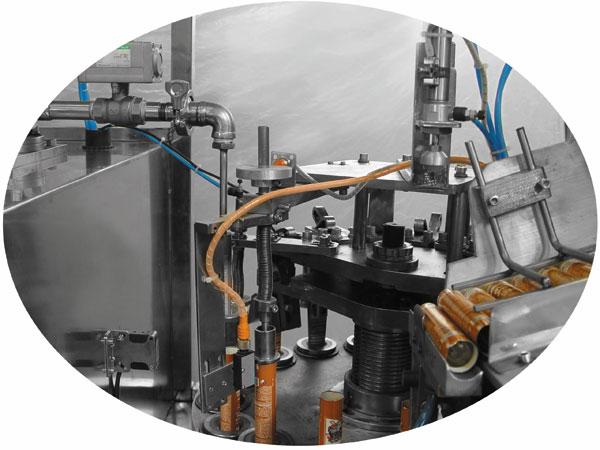

GJGF-2 automatic silicone sealant filling and sealing machine (for aluminum tube)
One、It can be used in subpackaging and hitting of viscose material filled in tubes. Controlled by quantitative cylinder, it can filling and sealing automatically with advantages in precise measurement, high degree in automation, reducing staff and lightening labor intensity;through several design and improvement, merits such as user-friendly,easy operation, and high stability have been achieved. It can be used with discharging machine(>20tons) of hydraulic pressure type. This kind of device is mainly used in cementing compound industry, such as silicone sealant, glass cement, ACRYLIC ACID glue, polysulfide sealant, polyurethone sealant and so on.
technical parameters of filling and sealing machines of silicon sealant

Two. Configuration :
Quantitative racking and sealing machine, one set (including auto-line and electric control box)

Three. technical parameters::
1.Working voltage:60Hz   220V。
2.Working pressure:0.6Mpa(by user)。
3.Packing container:soft tube of ф16-ф40mm,length: 50--200mm;note: machine can be produced according to client’s tube.
4.Metering range:20-130ml。
5.Precision:±0.5%。
6.Production capacity:25~45 pcs/min。
