Name:QLF-300 vertical filling and capping machine
Number:Pro2012103184921
Related Products:QLF-300 vertical filling and capping machine
Label:QLF-300 vertical filling and capping machine
Company:qunxing machinery
Time:2012/10/31 8:51:02

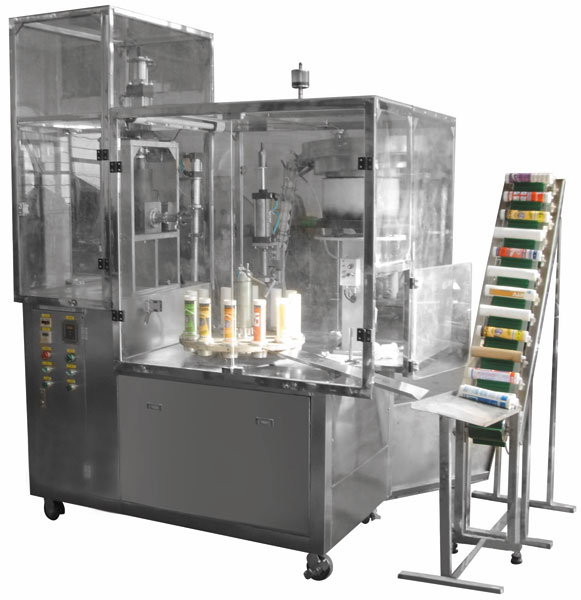

QLF-300 vertical silicone sealant filling and capping machine

One、 usage and Features:
The machine used for various types of adhesives and thick material packing,Vertical filling method,good  for a variety of high and low viscosity of the adhesive.
Equipment used crawler transmission automatic transmission the adhesive bottle, bottom plug, with high efficiency, high precision, low noise. Filling system with higher stability of hydraulic drive cylinder quantitative measurement, measurement accuracy, high stability. Automatic transmission equipment plastic bottles, bottom plug, auto-filling, locking the end plug, high degree of automation, on behalf of the adhesives industry is currently the highest level of filling equipment
Two、Technical parameters
1. Voltage:50Hz  380V
2.  Total power:8.5 KW
3. Air pressure:0.5Mpa
4. Adhesive bottle size:ф40-ф50mm,length 150--230mm
5. Range of measurement:100-500ml。
6. Accuracy:±0.5%。
7.:Capcity:25-42 pcs/min
Hits:3023
